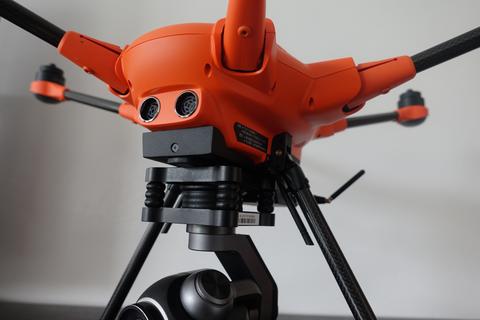

Sky Drone 4G/LTE/5G Upgrade for Yuneec H520

  • $2,399.00 USD


Back in stock, with delayed delivery. Lead time is 2 weeks.

The "Sky Drone 4G/LTE/5G Upgrade for Yuneec H520" is a user-installable upgrade module to add 4G/LTE or 5G communication capabilities to the Yuneec H520 UAV.

Note: This upgrade is only for the Yuneec H520. A product for the Yuneec H520E will be released soon. Contact us if you're interested in that.



REMOTE TEAM MODE

This mode allows you to have a pilot in the field and a remote team member controlling the camera payload remotely from anywhere in the world just using a web browser and an optional gamepad. Utilizing our proprietary low latency technology over 4G/LTE/5G you will feel like being there in person.

Specialists don't need to waste time to go to the field and can leverage big high resolution monitors in an office instead of difficult to see mobile devices in an sun-lit outdoor environment.

You will be able to control all aspects of the camera and access the full resolution image seconds after - even if you are hundreds of miles away.

Read our blog post about: Remote Team Mode for SAR and Law Enforcement



LONG RANGE VERSION OF YUNEEC'S TEAM MODE - EXAMPLE SAR

Search and Rescue operations need to happen quickly, precisely and with all information at hand. The Yuneec H520 ships out of the box with their "Team Mode" feature, which is great for operations on the ground. A second camera operator can monitor the camera and operate the gimbal while a pilot is flying the drone. That camera operator needs to be nearby the pilot.

With the Sky Drone 4G/LTE/5G Upgrade for Yuneec H520 that camera operator may be the commander at the headquarters, which can be located miles or even hundreds of miles away, while the pilot is at the scene and flies the drone right there.



REMOTE TEAM MODE - FLIGHT DEMO

While the drone is located over water, the operator in the back-office can monitor the situation, take photos and control the direction the camera looks at.


SKY DRONE BANDWIDTH ADAPTION TECHNOLOGY

Automatic adaption to available bandwidth ensures to always have a smooth low latency stream even in bad cellular signal conditions. You can also instantly change the bandwidth manually i.e. to manage data volume. More on this top at: How-it-works



4G / LTE / 5G

Using the 5G mobile network you can benefit from higher bandwidth, lower latency and better Quality of Service (QoS) options of that new network technology.



USER INSTALLABLE, EASY SETUP

This upgrade is easily user-installable and comes with everything needed to do the upgrade yourself. See video on how to install the system in less than 5 minutes.



SPECIFICATIONS

Weight 98g
Compatibility Yuneec H520
Optional Gamepad: Microsoft XBOX 360 Controller (or compatible)
Cameras (built-in)

two 1080p low latency cameras (front and bottom)

Camera Support (Yuneec)

Yuneec E10T / E10TV, E50, E90, CGO-ET, E30Z (zoom coming soon)

Cellular Data Consumption HD video: ~900MB per hour
Encryption Secure Real-Time Protocol (SRTP) / Datagram Transport Layer Security (DTLS) using AES256.
Cellular Network Technology:

4G Version: LTE Advanced Pro

5G Version: Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+
5G SA (standalone) and 5G NSA (non-standalone)

Supported Frequency Bands of 4G/LTE Version:

Global Band Support

B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66

3G fallback supported

Supported Frequency Bands of 5G Version:

Sub-6G: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B66, B71

LTE-TDD: B34, B38, B39, B40, B41, B42, B48

WCDMA: B1, B2, B3, B4, B5, B8

3G, 4G fallback supported

Public Safety Networks (4G Version):

public safety LTE networks in Europe (B20, B28)
(contact us if you need FirstNet™ support)

Private LTE Networks  (4G Version):

3.5GHz local private networks (CBRS band)

Carrier Certifications (4G Version):

AT&T, Verizon

Certification in progress: Bell, docomo, KDDI, Rogers, Softbank, Telstra, Telus



WHAT ELSE YOU NEED

The Sky Drone 4G/LTE/5G Upgrade for Yuneec H520 uses the mobile network. A data-enabled SIM card from your favorite mobile network carrier is all you need to get the upgrade working. The SIM card is placed into the Sky Drone upgrade device (described in the manual) and you're ready to go. Please double-check that your carrier supports at least one of the 4G/LTE or 5G bands mentioned above. It is always recommended to try with a pre-paid card first, before signing up for a long-term plan.



WHAT'S IN THE BOX

  • Sky Drone 4G/LTE/5G Upgrade for Yuneec H520 Unit
  • Two external 4G/LTE/5G antennas
  • Power cable
  • CE/FCC Certification Card with Manual
